Manage Business Activities
Business Activities (BA)​
When you modify a business activity, you need to push and reload the configuration using the "Poller" menu so that it is applied.
In Centreon Cloud, when you create a business activity, you must always add it to the all_BAs business view to make it visible to other users.
Definition​
Business Activities form the core of the Centreon BAM extension. As aggregated indicators, they are monitored by the software in real time using specific calculation methods. Business Activities are able to notify users depending their status, revealing a problem with the IT service or application.
Calculation methods​
Business activity statuses rely on the calculation done on indicators (child resources). The calculation method is configured at business activity level.
There are four calculation methods that you can use:
- Best status: When you only need to be warned that ALL indicators are critical at the same time
- Worst status: When you want to know immediately when at least one indicator is not-ok
- Ratio: When you want to model Cluster concepts by specifying a number or percentage of critical resources that you do not want to exceed
- Impact: When you want to precisely define the weight of each indicator and reflect that on your BA status
Below are some examples and a configuration of each calculation method.
- Best Status
- Worst Status
- Ratio
- Impact
The following order will be applied to find the "Best" status:
OK > Unknown > Warning > Critical > Pending
The configuration is as follows:
The following order will be applied to find the "Worst" status:
CRITICAL > Warning > Unknown > OK > Pending
The configuration is as follows:
This method helps you model “Cluster” concepts. The calculation is based on the number or percentage of indicators in CRITICAL status, which you compare to number/percentage thresholds that you do not want to exceed.
In the following example, we defined that we want the percentage of Critical indicators to be less than 80%.
The configuration is as follows:
After choosing whether you want to define them in terms of percentage or number, you must configure the threshold parameters:
- Critical threshold: if the number/percentage of Critical indicators exceeds that number/percentage, the Business activity will be Critical
- Warning threshold: if the number/percentage of Critical indicators exceeds that number/percentage, the Business activity will be Warning
This mode is complex to use, but it could help you model severity-related concepts.
When you use impact mode, the business activity has a “Health” between 100% and 0%. When you attach indicators to it, you must define the impact (in %) of each status for each indicator. When these indicators switch to these statuses (unknown, critical etc.), the calculation is simple: BA Health = 100% - Current impacts.
You then use the Warning and Critical thresholds to determine at what level you want the BA to become Warning or Critical
- Warning threshold: Between 100 and 0, the threshold below which the BA will switch to Warning status
- Critical threshold: Between 100 and 0 (< the Warning threshold) below which the BA will switch to Critical status
The health value between 100% and 0% is often related to a service quality measurement. A variation in this value is used to determine whether the modeled IT service or application is in an OK, Warning or Critical state.
Create a Business Activity​
To add a Business Activity, click the Add button. The following panel appears:
In this configuration panel, after giving a unique name (mandatory), you
need to configure multiple sections to have an aggregated indicator. The
name is the only mandatory parameter, but to have a BA that works, you
must at least configure some indicators and define the
calculation methods. This can be done in the "Indicator" section.
The following characters are not authorized in the name of a BA: ~!$%^&|'"<>?,()=*{} and spaces.
Indicators​
This section is the most important section for a business activity, because it is where you define how the status will be calculated by attaching resources to the business activity and setting the calculation method.
The types of indicator you can use are:
- Services
- Other business activities: it is really important to understand that you can create “infinite” multi-level BAs to model simple to highly complex IT services or apps.
- Meta services
- Boolean rules: a combination of services with AND/OR/XOR rules
Calculation methods
You can choose between the following four calculation methods. Refer to the previous section to understand each calculation method.
- Best status
- Worst status
- Ratio
- Impact
Now that you have chosen how the business activity status will be calculated, you can manage how planned downtime on indicators will be handled. You have three choices:
- Ignore the downtime: In that case, the planned downtime positioned on child indicators will be ignored, the BA will be impacted, and that is all.
- Inherit the downtime: the BA is automatically set in “planned
downtime” whenever an indicator in a non-ok state is in planned
downtime AND impacts the BA. The BA will still be impacted. The
planned downtime inheritance follows these rules:
- A BA inherits planned downtime from its indicators only when the BA status is not OK.
- When a BA is in planned downtime due to indicators downtime inheritance: If the BA status switches to OK, planned downtime is stopped.
- When a BA is in planned downtime due to indicators downtime inheritance: If an impact comes from an indicator that has no planned downtime, the BA downtime is stopped.
- Ignore the indicator in the calculation: when the indicator impacts the BA and is in planned downtime, its status/impact is ignored in the calculation.
After configuring how the business activity status is computed, you will be able to configure the following properties:
- Business View: what BV(s) to link the BA to. Mandatory if you want to give access to this BA to non-admin users
- Display: All parameters concerning the way the BA will be accessible outside the BA monitoring page
- Reporting: What SLA and time period you want to use to calculate the BA availability statistics
- Event handler: parameters to auto-remediate the BA when state becomes non-ok
Business View​
In Centreon Cloud, when you create a business activity, you must always add it to the all_BAs business view to make it visible to other users.
Display​
- Display on remote server: If you are using a remote server, you can send the business activity to it so that it is also available for remote teams. This is possible only if ALL the indicators under the BA (at any level) are visible by the remote server.
- Geo-coordinates: Geo-coordinate to position the BA on a geoview
- Associated infrastructure view name: the BA probably corresponds to an aggregated/customer's point of view state of an IT service or application that relies on a complex infrastructure. If this infrastructure was designed in Centreon Map, you can ease access from this BA to the corresponding view to help users to drill down when a problem occurs on that BA.
Notification​
This screen is not currently active. In Centreon Cloud, BAs use the same notification mechanism as hosts and services.
Reporting​
- Default reporting time period: Availability statistics for widgets and reports will be automatically calculated using this time period
- Service Level Agreement in % (SLA): whenever the availability is compared to a SLA in %, this will be the value that it will be compared to
- Service Level Agreement in minutes (SLA): whenever the availability is compared to an SLA in minutes, this will be the value that it will be compared to
- Service Level Objective in % (SLO): additional threshold in % to compare the availability. It can be seen as an “SLA warning” threshold.
- Service Level Objective in minutes (SLO): additional threshold in minutes to compare the availability. It can be seen as an “SLA warning” threshold.
- Extra reporting time periods: Additional time period you may want to use in widget and reports
In the Default reporting time period and Extra reporting time periods fields, do not use time periods that include exceptions, as the exceptions will not not be taken into account.
Event handler​
Activate or not the auto-remediation command that you may execute when the BA status switches.
In order for the new BA to be calculated and monitored, you must regenerate the configuration on the scheduler and restart the monitoring services through the interface in the Configuration > Poller menu.
List Business Activities​
The BA is managed through the
Configuration > Business Activity > Business Activity menu.
You have inline actions and global actions to delete, duplicate, enable/disable the BA and massively change thresholds.
Deleting a business activity is permanent; only past data will be available through reports/widgets
Indicators (KPI)​
To update the indicator configuration, you need to push and reload the configuration using the “Poller” menu
Definition​
An indicator is a resource in the monitoring system that is linked to a BA. A BA may have multiple indicators and sub-indicators. There are four types of indicator:
- Service (Service by hostgroups are NOT usable as indicators)
- Meta service
- Boolean
- Another business activity
An indicator can only impact a BA when the status of its object (e.g., a service) is Hard (validated).
The indicator can impact the health of a BA and change its value according to the indicator status. We recommend that you use the standard impact mode (based on keywords Minor, Major, etc.) instead of the advanced mode based on numeric impact values, which involve a more complex calculation.
Any time an indicator status changes, the BA engine evaluates the impact and subtracts its value from the BA health level. The minimum health of a BA is 0, even if the sum of the impacts of its indicators is > 100.
List Indicators​
Indicators can be configured in two different ways:
- From the BA panel (common way)
- From Configuration > Business Activity > Indicators
| Column | Description |
|---|---|
| Indicator (KPI) | Indicator or Key Performance Indicator: Name of the indicator based on the object used |
| Type | Indicator type (service, meta service, BA, boolean rule) |
| Warning Impact | Impact weight in the event of a Warning condition, in real-time monitoring. Ignored if indicator is a boolean rule |
| Critical Impact | Impact weight in the event of a Critical condition, in real-time monitoring |
| Unknown Impact | Impact weight in the event of an Unknown condition, in real-time monitoring. Ignored if indicator is a boolean rule |
| Actions | Actions can be performed (modification,activation/deactivation) |
The More Actions menu allows an action to be applied to several indicators at once:
- Activate the indicator within their BA.
- Update impact types collectively.
- Deactivate indicator within their BA.
- Delete indicator.
Create an indicator (KPI)​
In this page, you can only attach an indicator to business activities that use the “Impact” calculation method. If you want to manipulate BA or indicators using another calculation method, go back to the Business Activity page.
There are several ways to create an indicator:
Add an indicator​
To add an indicator, click the Add a KPI link, which takes you to the following form.

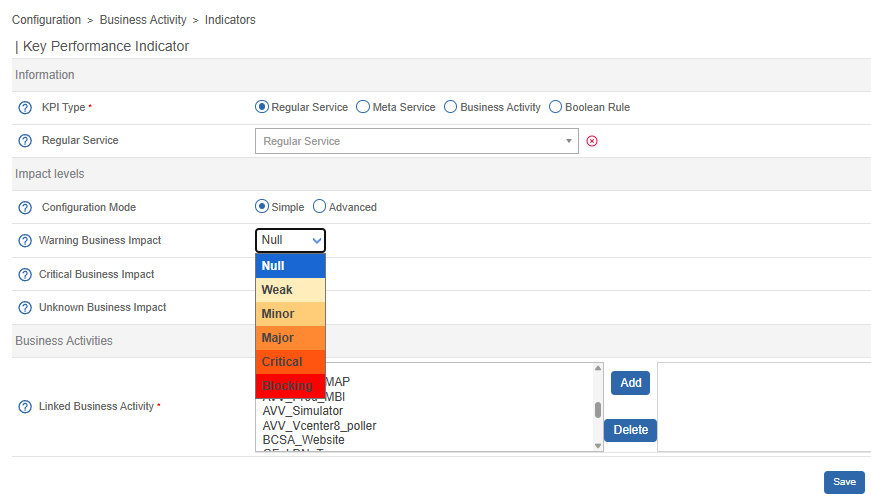

Regular Mode:
Advanced mode:
To be able to manually define an impact:
| Column | Description |
|---|---|
| Configuration Mode | Configuration mode: regular or advanced |
| KPI Type | KPI type (service, meta service, boolean rule or a BA) |
| Key Performance Indicator | Choice of KPI based on the objects in Centreon |
| Warning Business Impact | Impact weight in the event of a Warning condition, in real-time monitoring |
| Critical Business Impact | Impact weight in the event of a Critical condition, in real-time monitoring |
| Unknown Business Impact | Impact weight in the event of an Unknown condition, in real-time monitoring |
| Linked Business Activity | BA related to KPI |
To add a boolean rule: First create the boolean rule (see below), and then add the KPI.
Adding multiple KPIs​
In order to add multiple KPIs, click the Add multiple KPIs link, which takes you to a data entry form.
| Column | Description |
|---|---|
| Configuration Mode | Configuration mode: Standard or Advanced |
| Object Type | Type of object from which the indicators will be loaded |
| Hosts, Host Groups, Service group | Depending on the selected object type, a list of objects will be automatically loaded |
| Linked Business Activity | BA related to indicators |
Click the Retrieve KPI button; a list of indicators will be displayed. You can filter and apply thresholds, collectively or one by one:
| Column | Description |
|---|---|
| Host | Host |
| Service | Service |
| Warning Impact | Impact weight in the event of a Warning condition, in real-time monitoring |
| Critical Impact | Impact weight in the event of a Critical condition, in real-time monitoring |
| Unknown Impact | Impact weight in the event of an Unknown condition, in real-time monitoring |
Boolean Rules​
To create a boolean rule, go to:
Configuration > Business Activity > Boolean Rules
| Column | Description |
|---|---|
| Boolean name | Name of the boolean KPI |
| Expression | Logical expression (see below) |
| Impact is applied when expression returns | State of logical expression that triggers the impact |
| Comments | Comments regarding the boolean KPI |
| Status | Enabled or Disabled |
Logical expression:
- Field for editing the logical expression
- Toolbox
- Services that compose the logical expression
- Button for evaluating the expression with real-time monitored status
- Boolean state after evaluation (whether it is real-time or simulated)
- Enter simulation mode, thus allowing the user to simulate the statuses of the defined services
Business View (BV)​
Definition​
BVs are used to gather multiple BAs into a single group. Similar to Centreon host groups, BV groups can be used in different Centreon BAM screens.
Access restrictions (via ACL) for viewing BAs are managed by linking them to BVs, which are in turn linked to one or more Centreon Access Groups.
For the purpose of a root cause analysis, as soon as you give a user access to a business activity, they will see all the indicators linked to it, no matter what their restriction concerning resources used in the BA definition
A BV is not an indicator as such by which data can be calculated. The information in a BV depends on its content and is displayed in real time.
List Business Views​
Configure a BV in the Configuration > Business Activity > Business Views menu.
| Column | Description |
|---|---|
| Name | Business view name |
| Description | Brief description of BV |
| Displayed | The BV is either displayed or not displayed on the Centreon BAM screens (deprecated) |
| Actions | List of actions to be performed on the BV (modification/display) |
Deleting a BV:
- Does not delete the BAs that are linked to it.
- Is permanent.

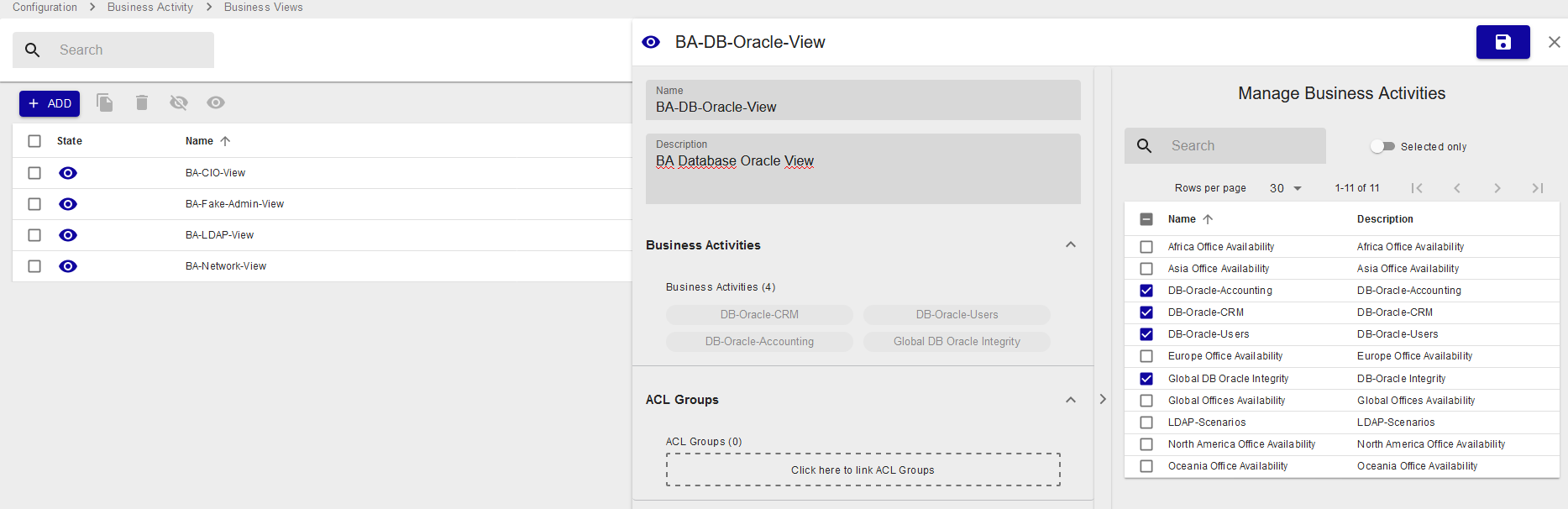

Create a Business View​
| Column | Description |
|---|---|
| Name | BV name |
| Description | Brief description of the BV |
| Business activities | The BA(s) linked to the BV |
| ACL Groups | The access group(s) that can consult the BV and its BA |
