CLM basics

What are logs?

CLM handles logs. Logs contain detailed information about events, errors, and the performance of your IT system.

What does a log entry look like in CLM?

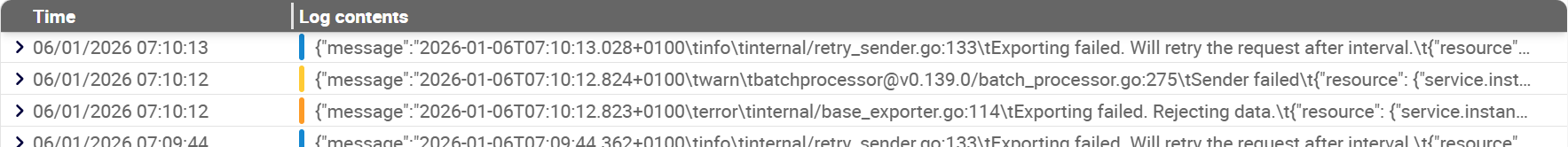

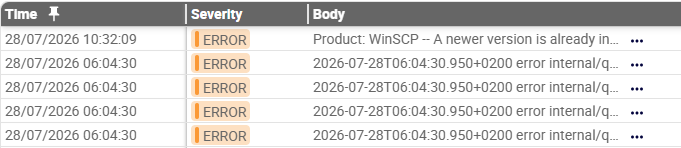

All logs received by CLM are listed on the Log explorer page, where you can filter them. In CLM, each log entry has a severity (i.e., a log level), indicated by a colored line.

What can Centreon Log Management do with logs?

Here are the main features of Centreon Log Management:

1. CLM collects and centralizes logs from various sources (servers, applications, databases, network devices, etc.).

2. CLM allows you to analyze these logs in real time, using filters, queries, or dashboards. This helps you detect detect anomalies, errors, security incidents, or unexpected behavior: see Use cases for detailed examples.

3. CLM creates alert events in case problems occur or critical thresholds are exceeded, according to alert rules you have defined.

4. CLM allows you to store logs securely over long periods of time (for compliance, security, or historical analysis).

What is OpenTelemetry and how is it used by Centreon Log Management?

Logs are a type of telemetry data. Centreon Log Management can read logs in the OpenTelemetry format. OpenTelemetry is a protocol for sending this kind of data.

OpenTelemetry data is structured (often in JSON or in Protobuf), standardized based on semantic conventions (with the same fields and format everywhere), and provides rich context about events, such as the service, environment, version, and custom attributes.

OpenTelemetry logs aren't just text: they're data you can analyze. And CLM lets you define dynamic alerts on them.

• You can send logs in OpenTelemetry format directly to Centreon Log Management.
• If a device produces logs in a format other than OpenTelemetry, use an OpenTelemetry Collector to convert the data. The collector can run as an agent on the device or in gateway mode to receive, enrich, translate and forward logs to Centreon Log Management.

What does a log entry in OpenTelemetry format look like?

A log entry in OpenTelemetry format always has a timestamp and a service name (for the service that produced the log). Usually, it also shows the log's severity: DEBUG, INFO, WARN (WARNING in CLM), ERROR, or FATAL. All the other information in the log depends on how you have configured your OpenTelemetry Collector.

Here is an example of a raw log entry sent by the Windows Event Viewer, collected by an OpenTelemetry collector, then converted to CLM's internal syntax:

{
  "attributes": {
    "event.id": 16394,
    "event.record.id": 226535,
    "event.task": "0",
    "process.pid": 0
  },
  "body": {
    "message": "La migration de bas niveau hors connexion a réussi."
  },
  "observed_timestamp_nanos": 1763648218788360200,
  "resource_attributes": {
    "event.provider.guid": "{XXXXXXXX-C8C9-472C-A5F9-F2BDFEA0X309}",
    "event.provider.name": "Microsoft-Windows-Security-SPP",
    "host.name": "MyLaptop",
    "os.name": "Microsoft Windows 10 Pro",
    "os.type": "windows",
    "os.version": "22H2",
    "service.namespace": "application",
    "service.version": "1.0.0"
  },
  "service_name": "windows-event-log",
  "severity_number": 9,
  "severity_text": "INFO",
  "timestamp_nanos": 1763648218609230600,
  "trace_flags": 0
}

• Log attributes describe what the log is about (message details, error code, etc.)

• Resource attributes show the context of the log, i.e. what produced this log. Here are some examples of common resource attributes for logs:

  • service.name – the name of the service emitting the log
  • service.version – version of the service
  • host.name – hostname or machine name
  • cloud.region – cloud region (e.g., us-east-1)
  • k8s.container.name – Kubernetes container name
  • deployment.environment – environment like prod or staging.

In CLM, you can filter your data by using these attributes in queries, in Log explorer or dashboards.

Which OpenTelemetry attribute determines the date and time of logs?

The date and time of logs are based on the OpenTelemetry attribute observed_timestamp_nanos.
